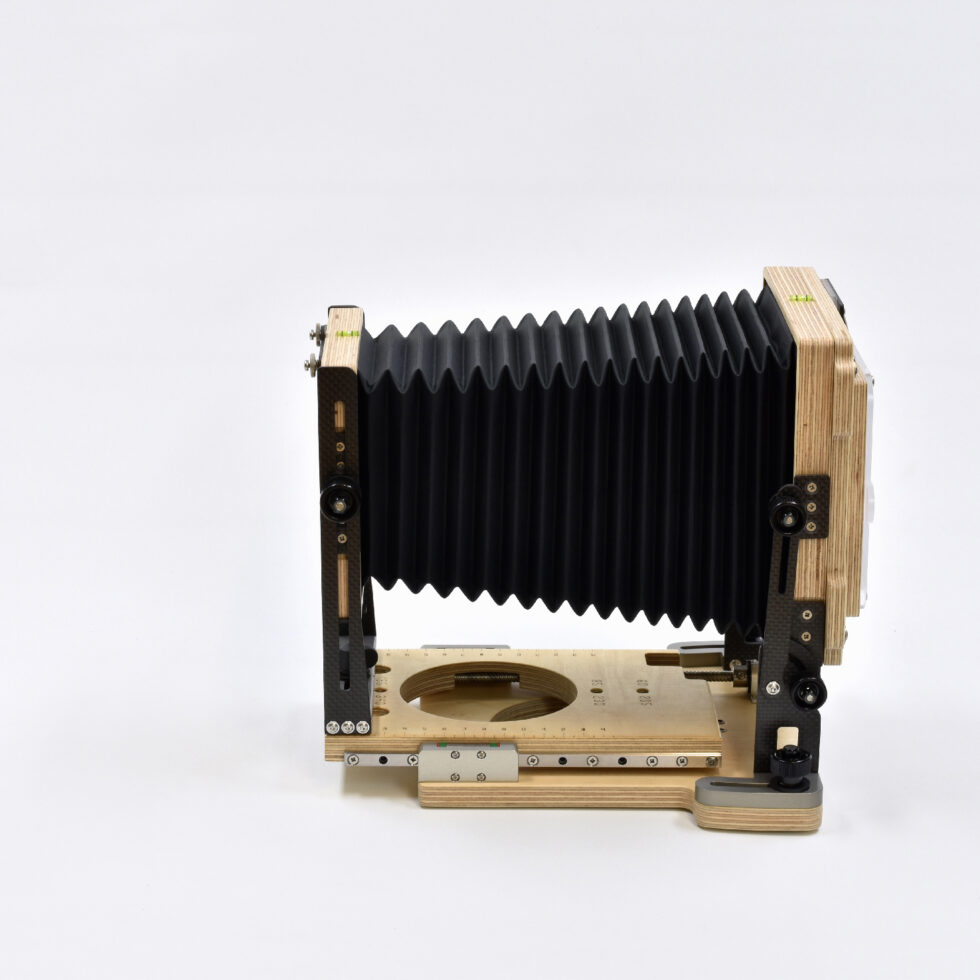

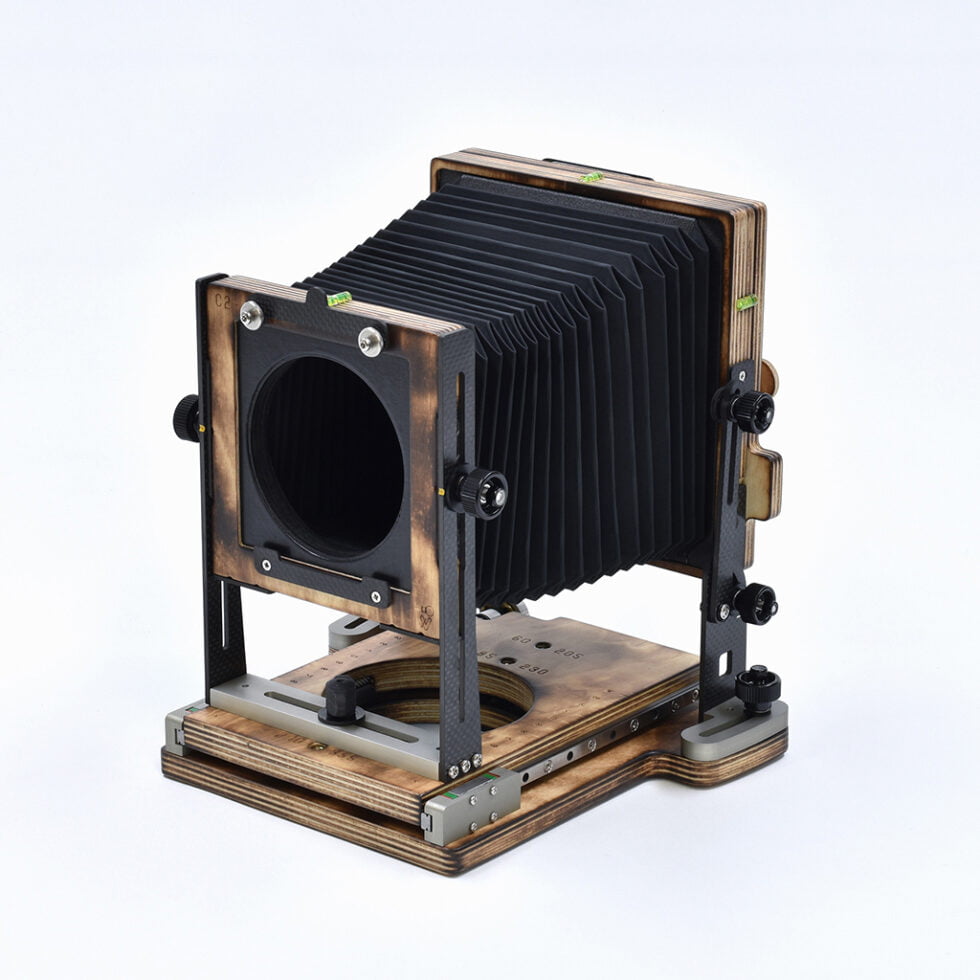

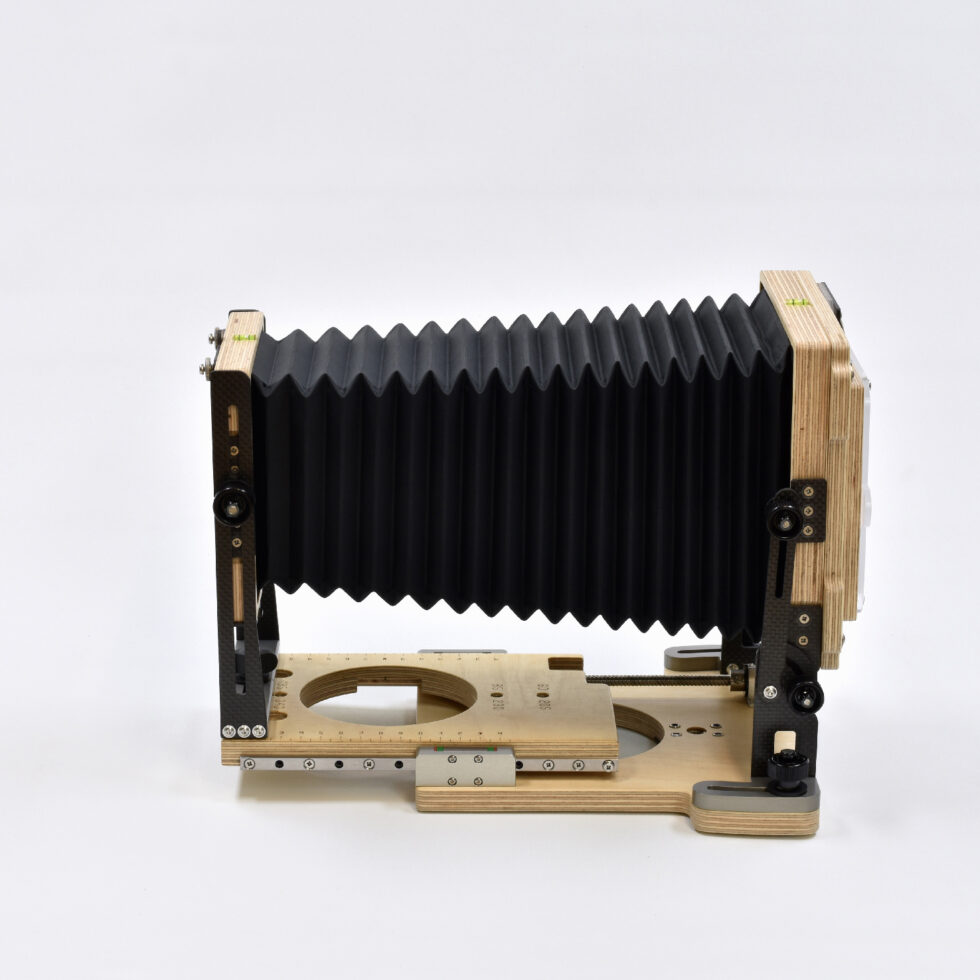

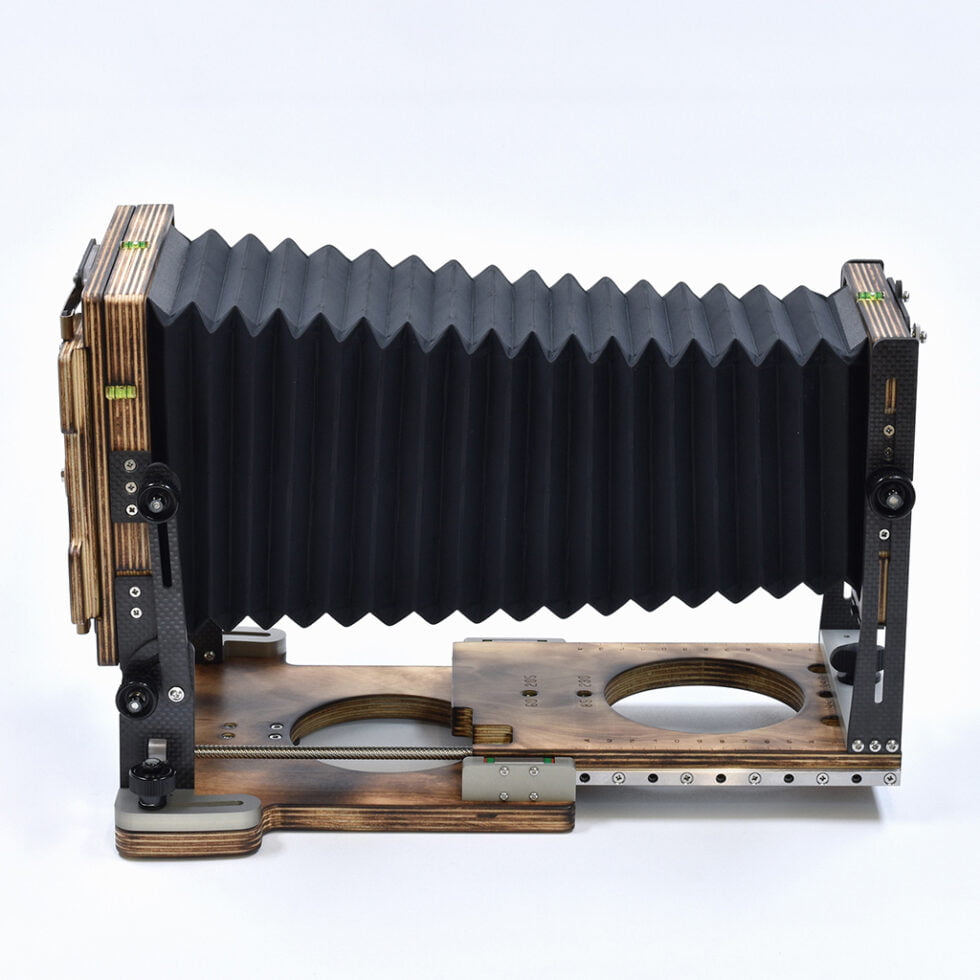

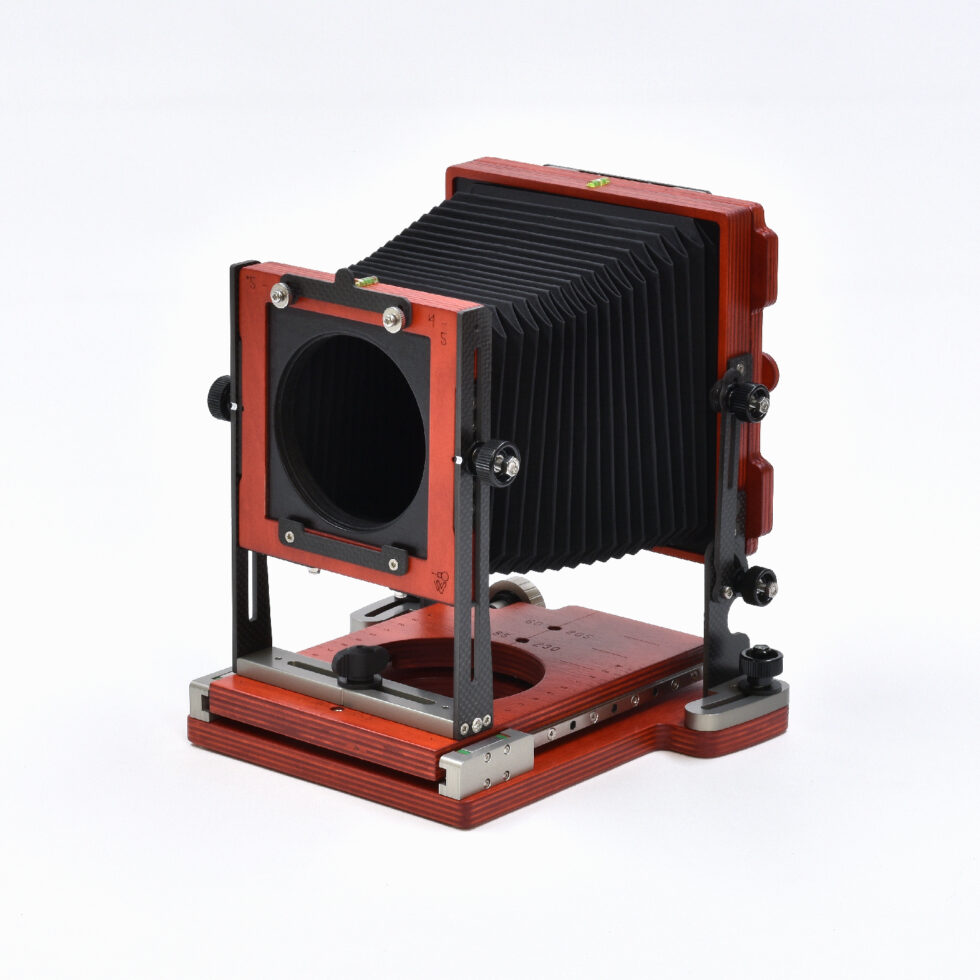

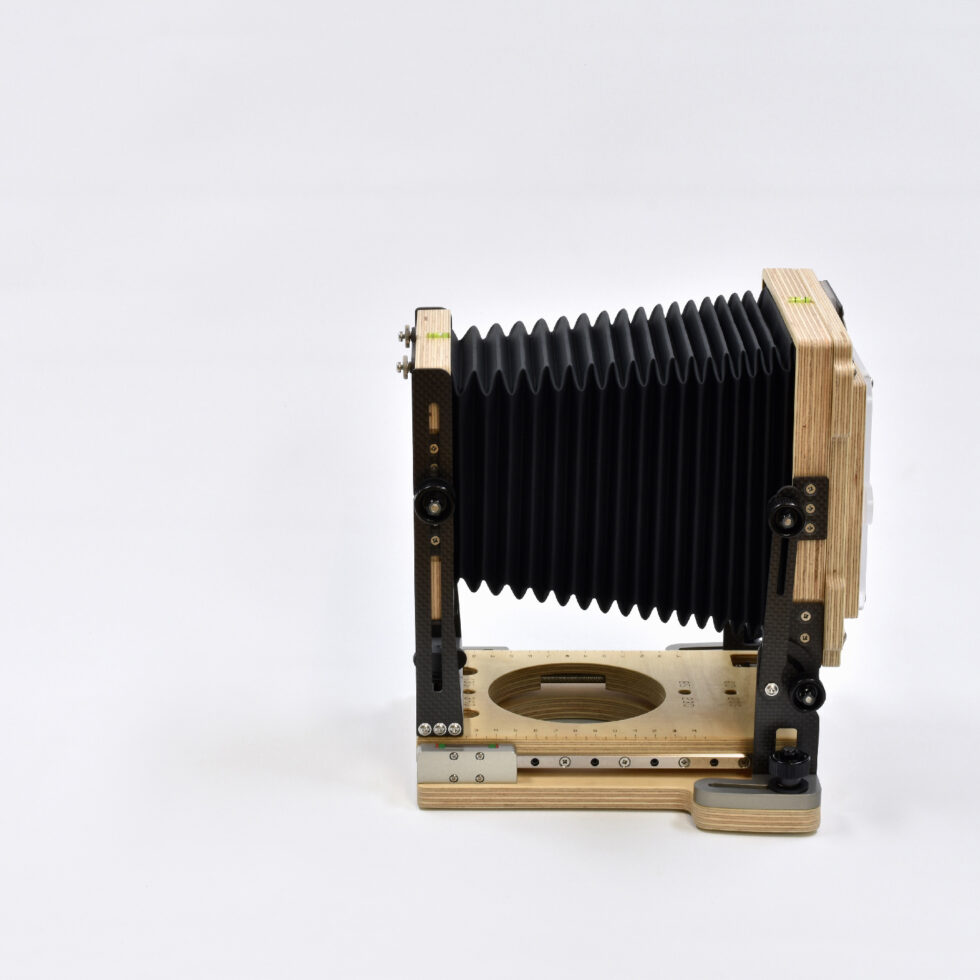

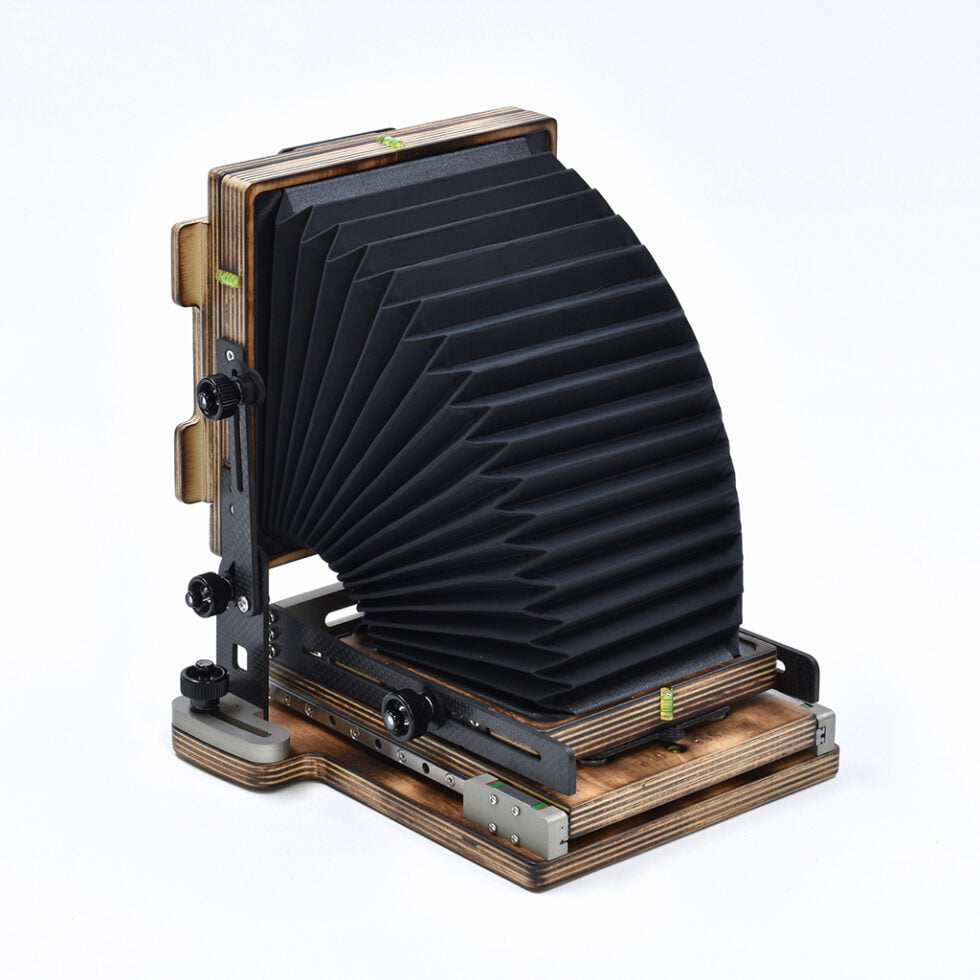

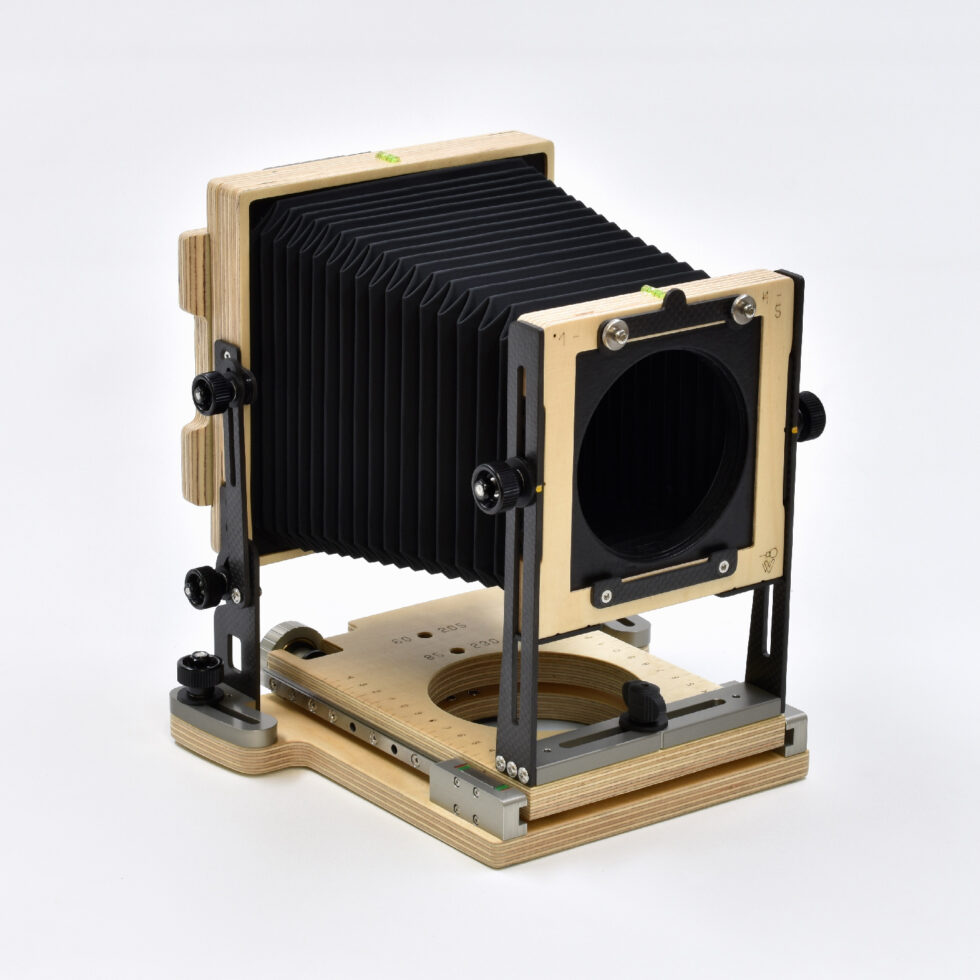

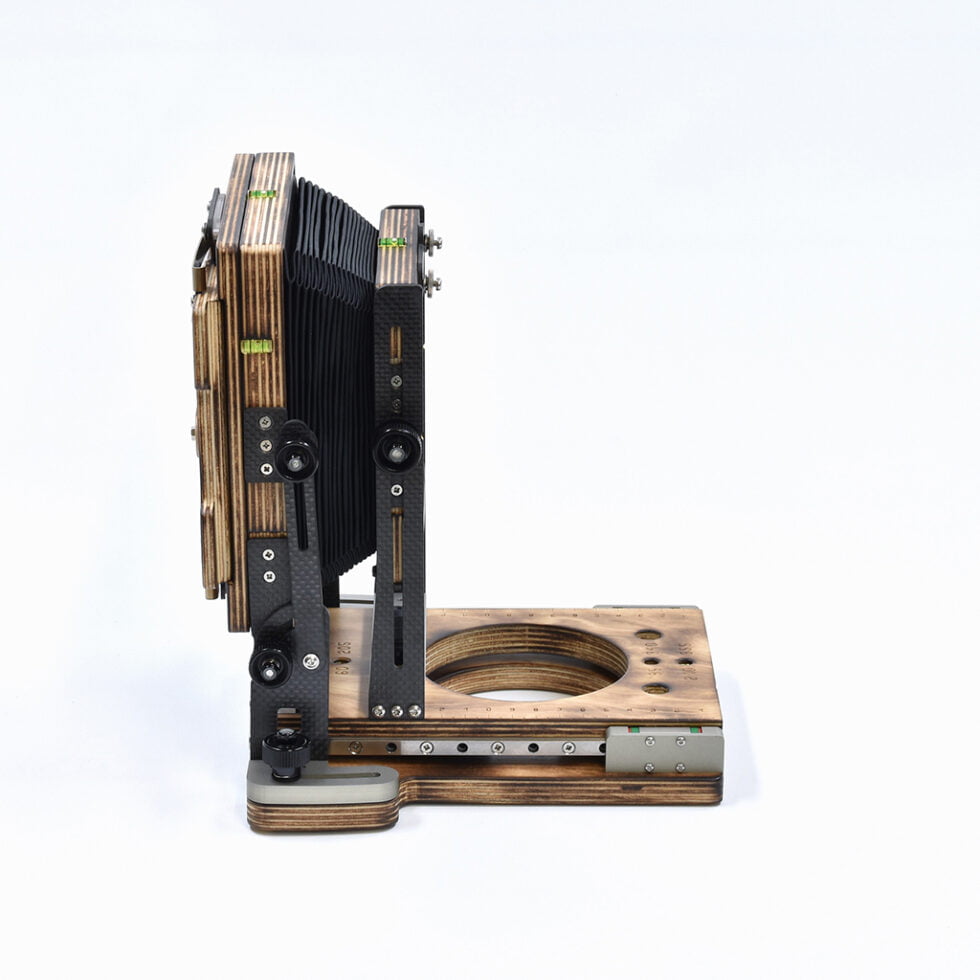

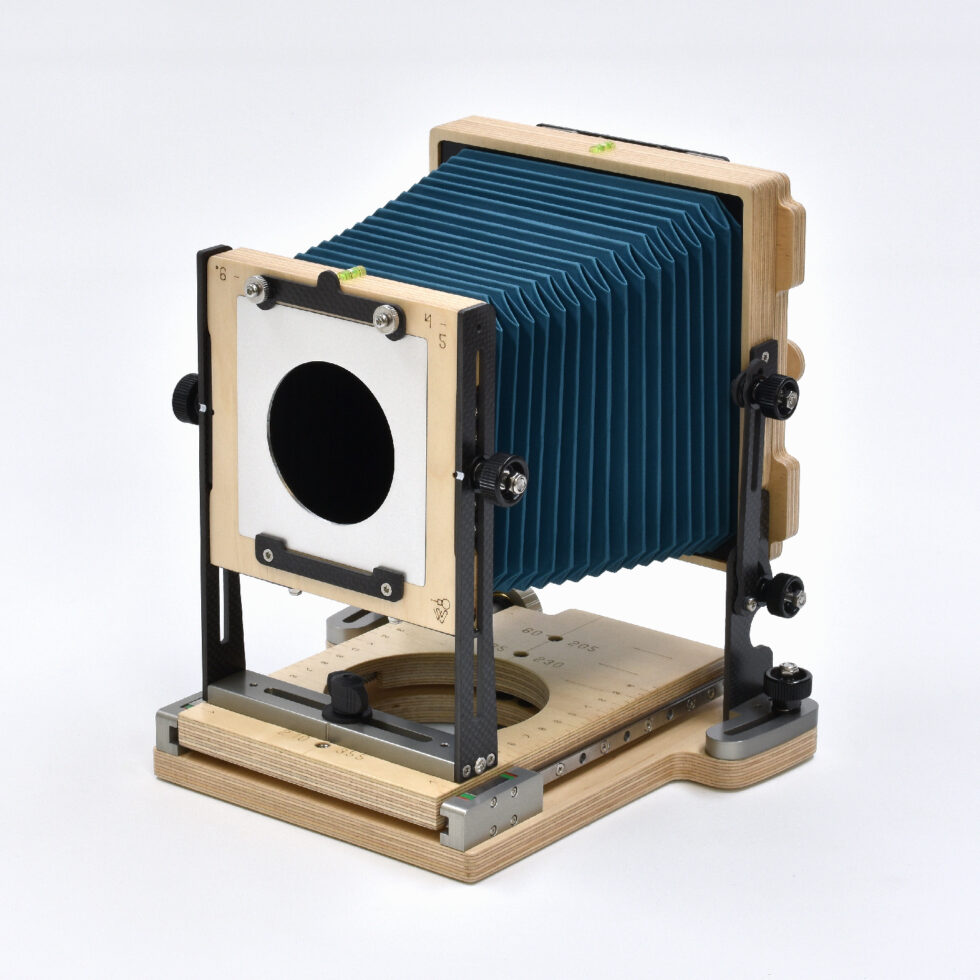

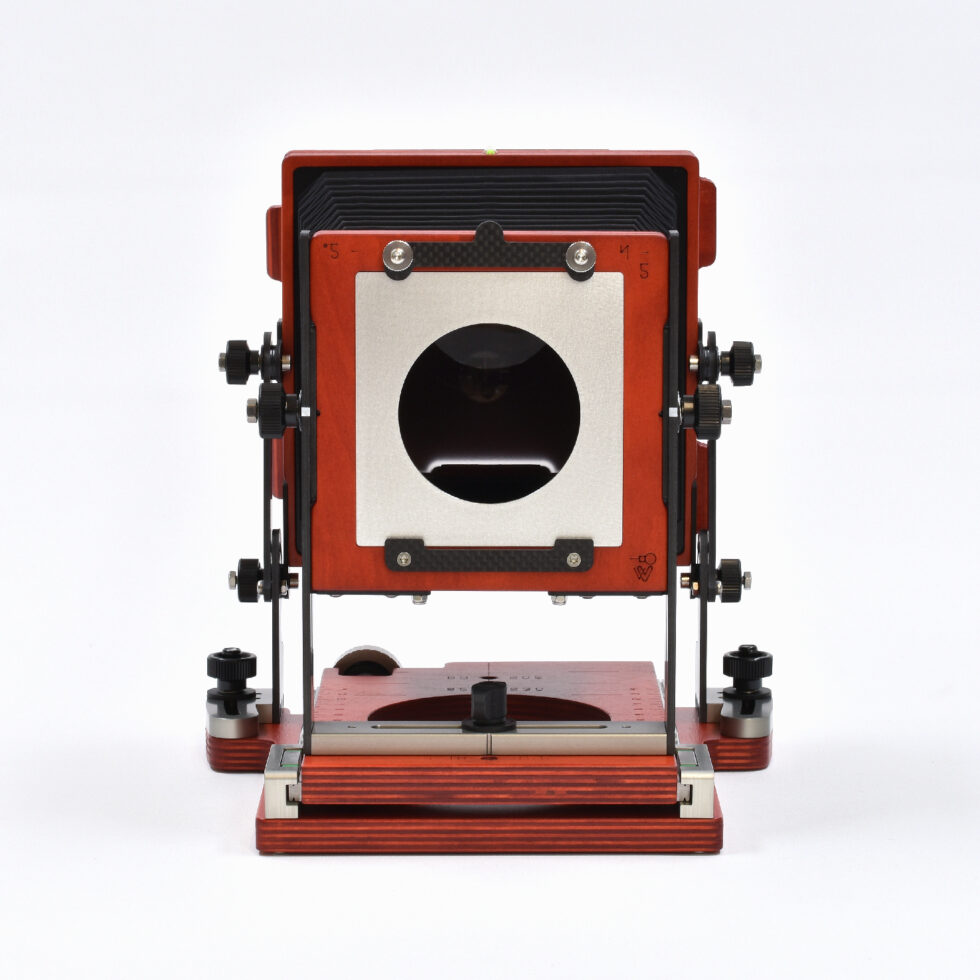

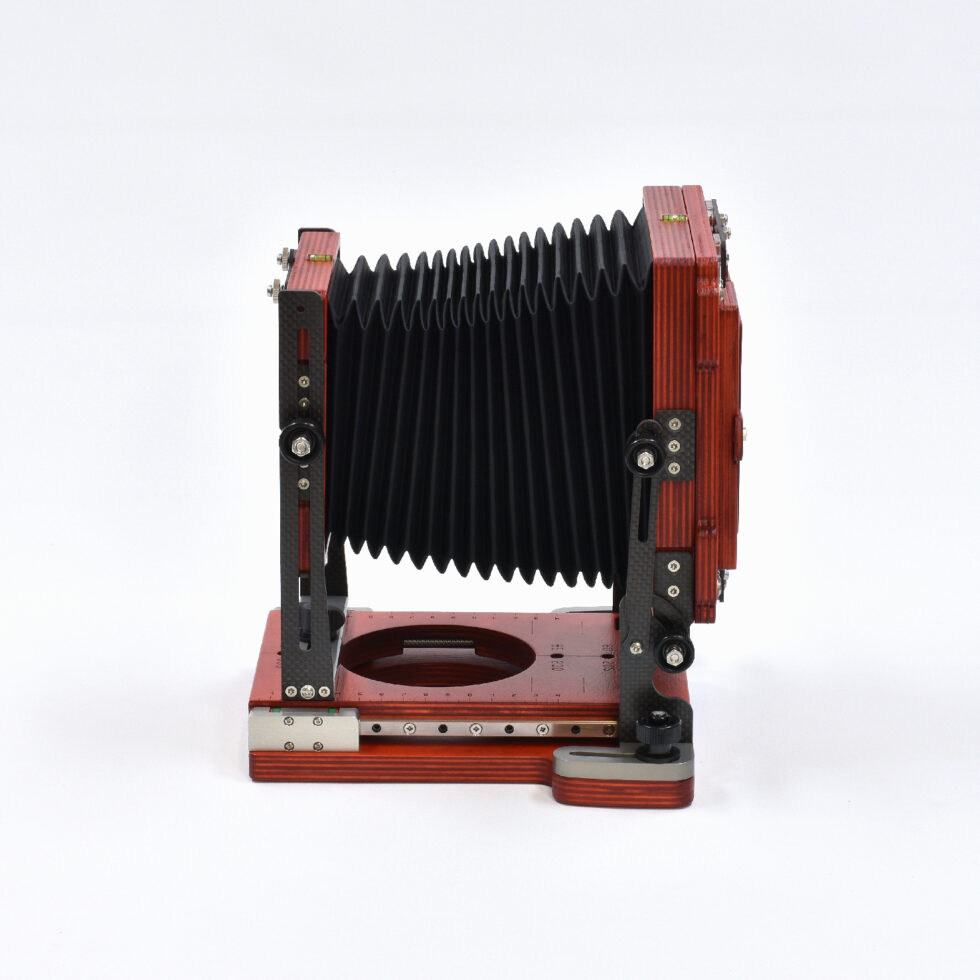

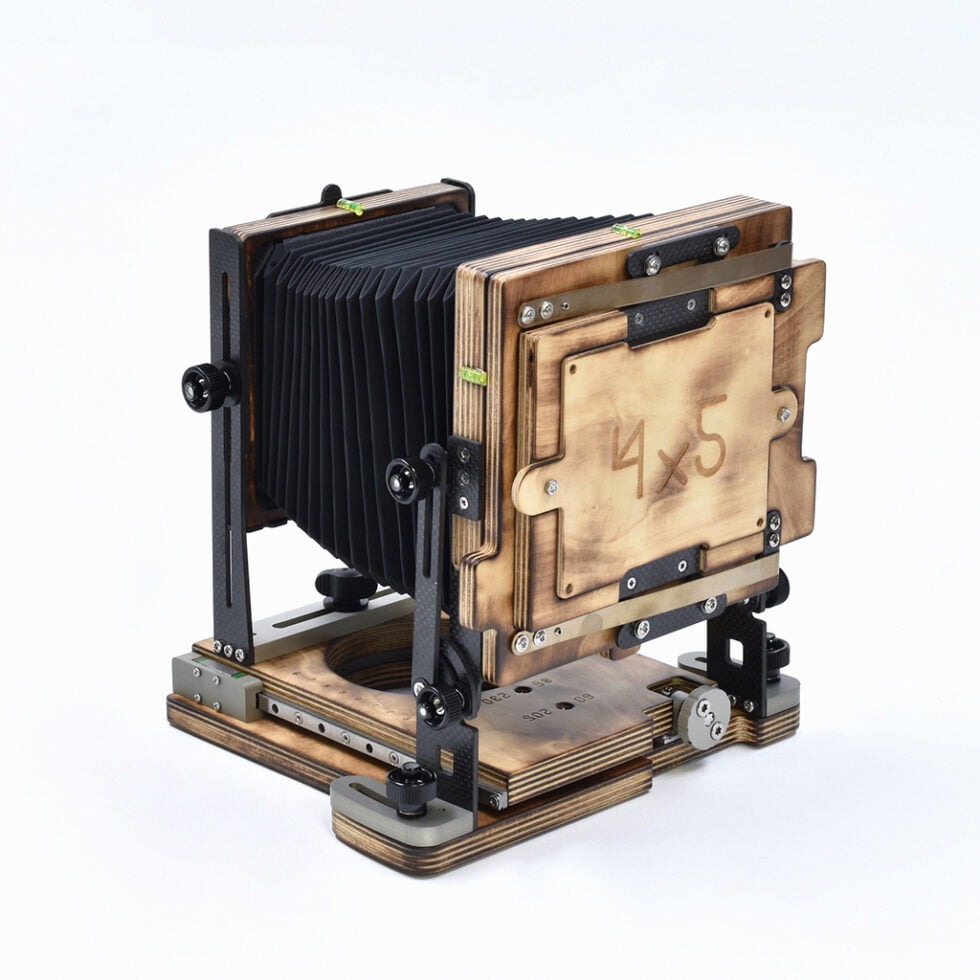

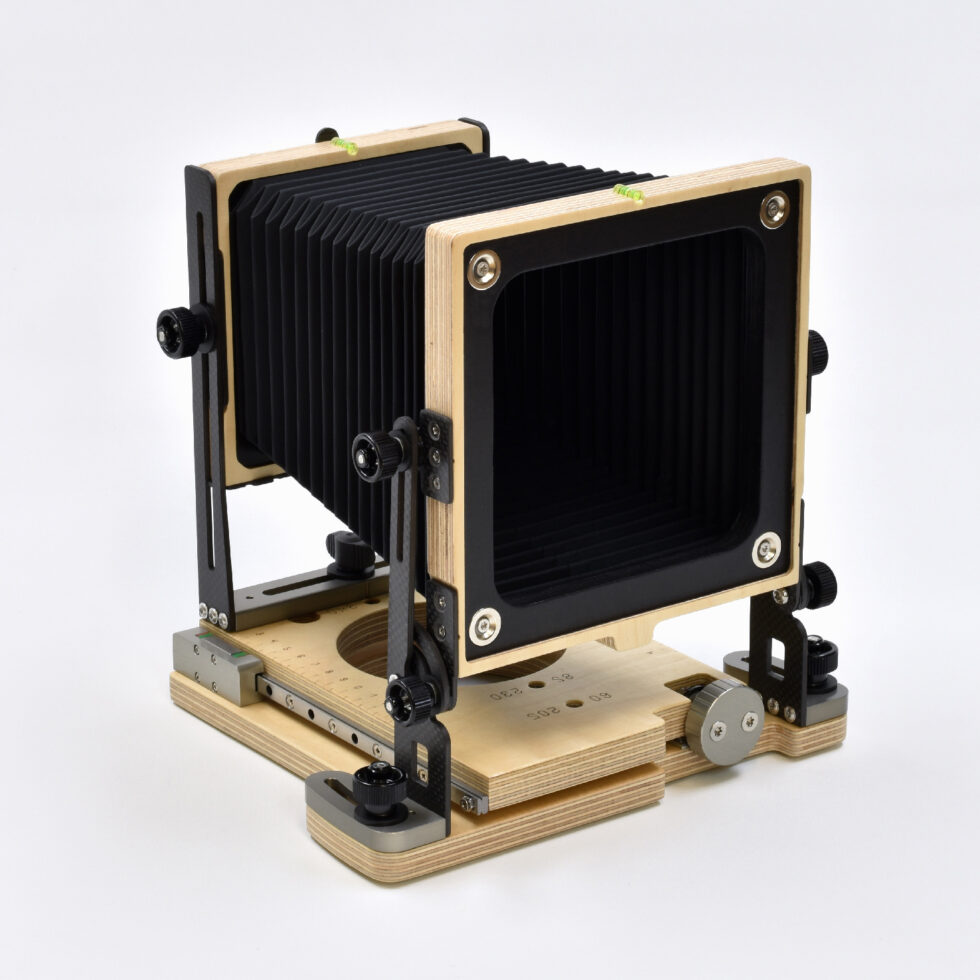

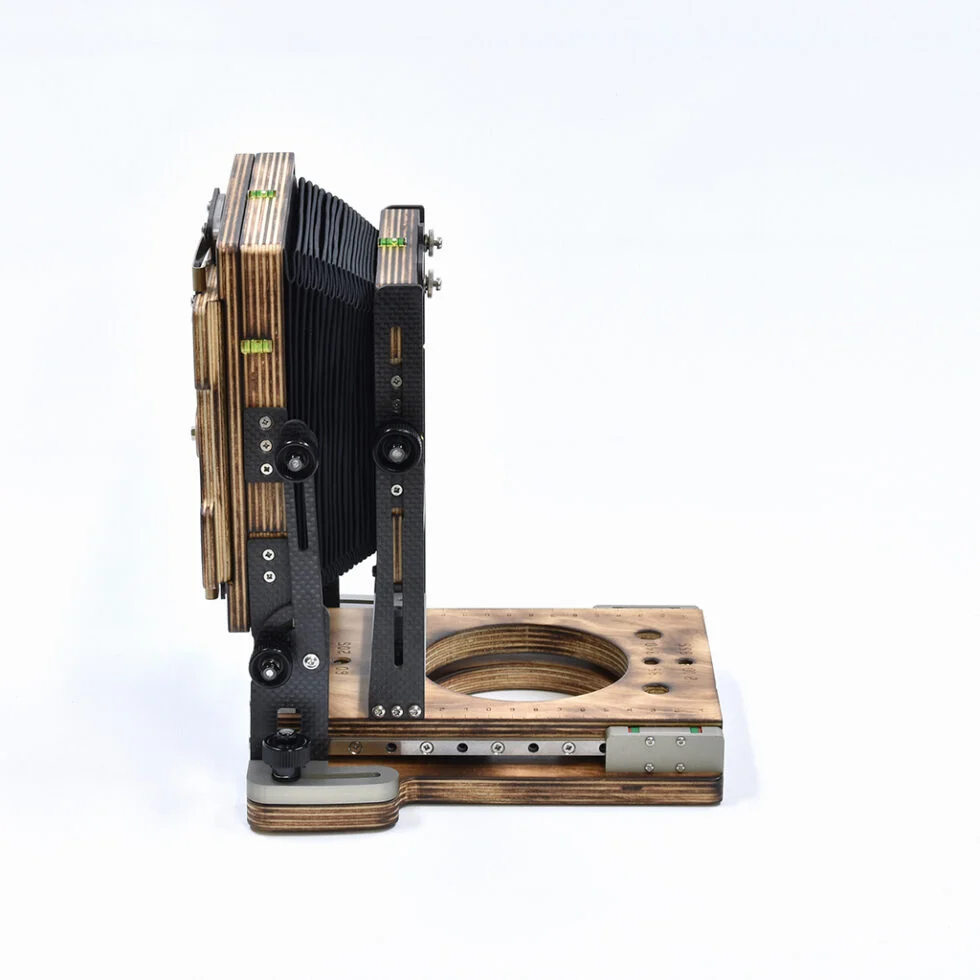

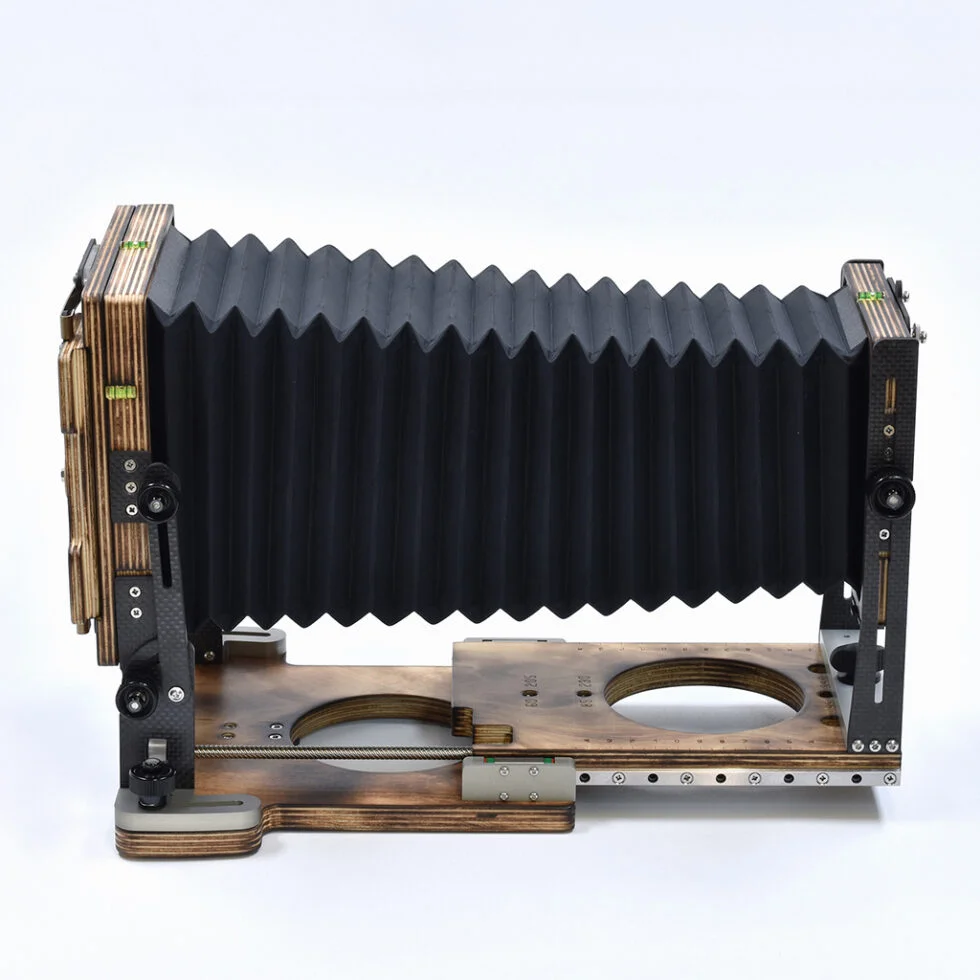

The 4×5
Price range: 840,00 € through 1090,00 €
A light and very stable chamber.
Your best ally for your photo shoots.
/// Current lead times for manufacturing/delivery 8/10 weeks ///
Description
Product Details

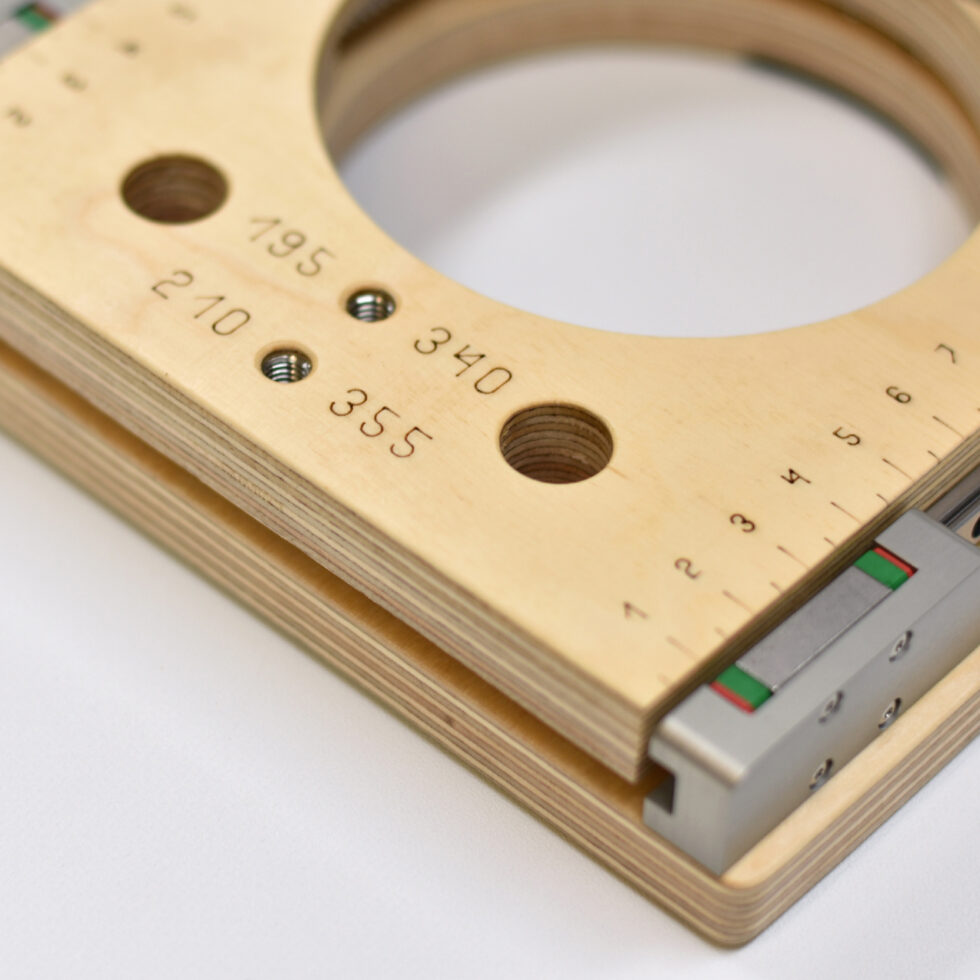

Minimum extension: 60 mm
Maximum extension: 355 mm
Recommended focal length range: from 90 to 250 mm

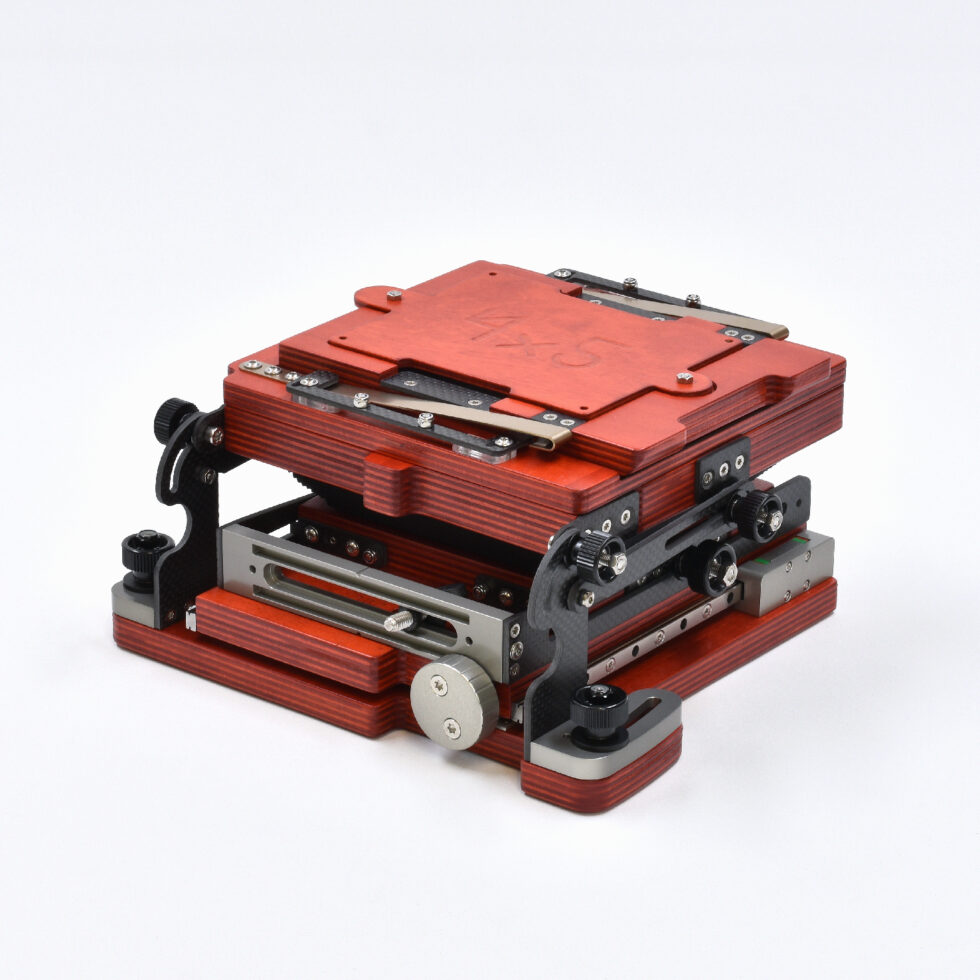

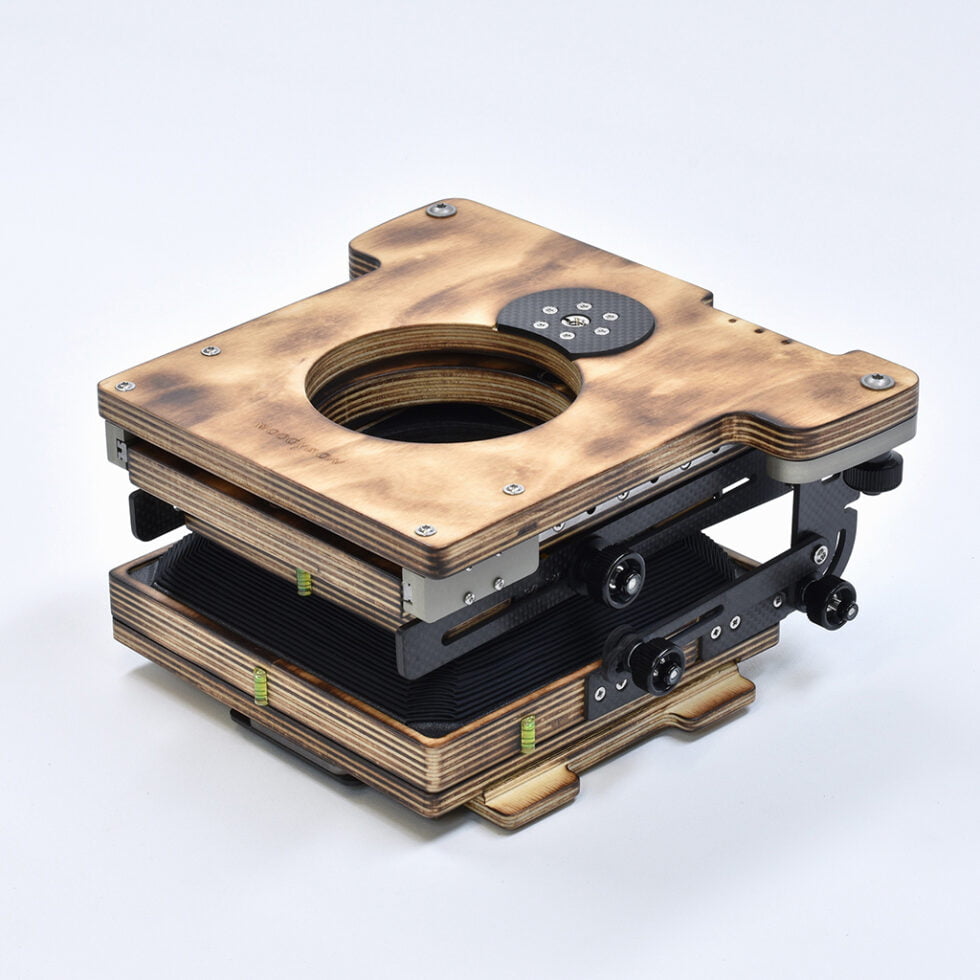

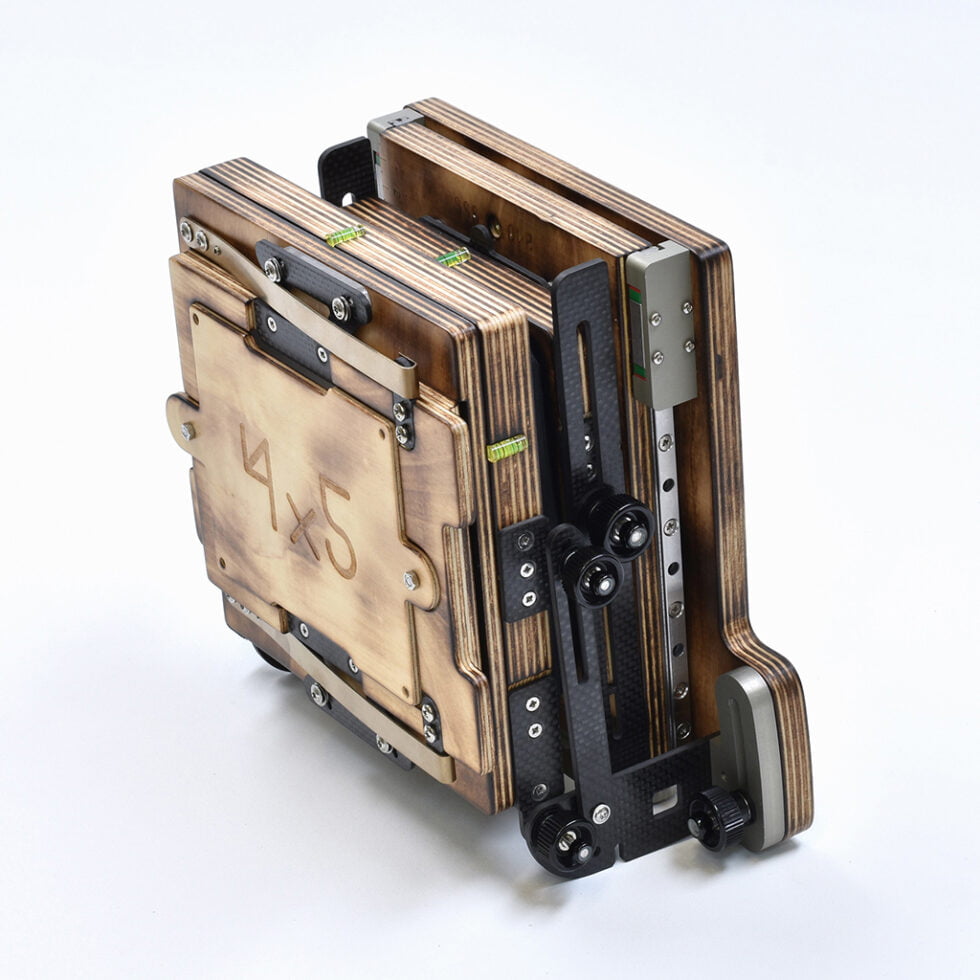

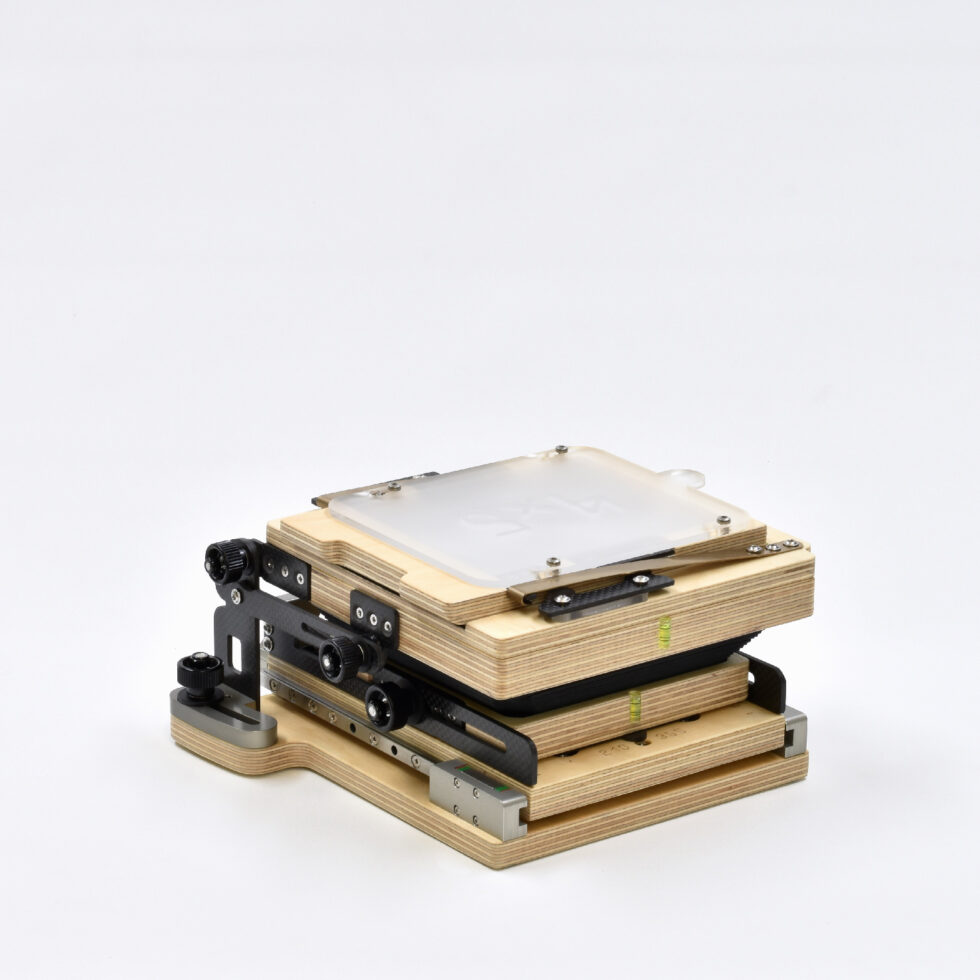

Dimensions of the closed box:
· Length: 200mm
· Width: 230 mm (with buttons)
· Height: 130 mm
Materials: Birch plywood, carbon fiber, anodized aluminum,
stainless steel screws, plastic buttons with stainless steel insert
Weight: 1.8 kg (with frosted glass and board)

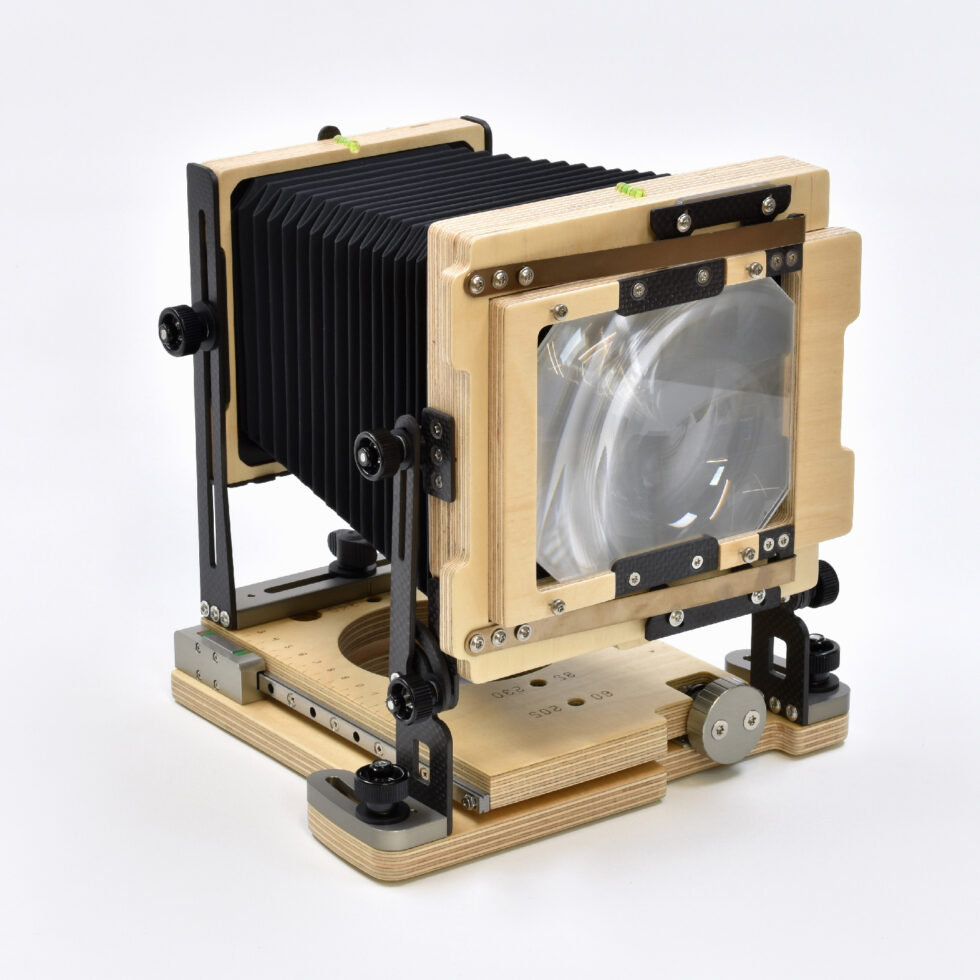

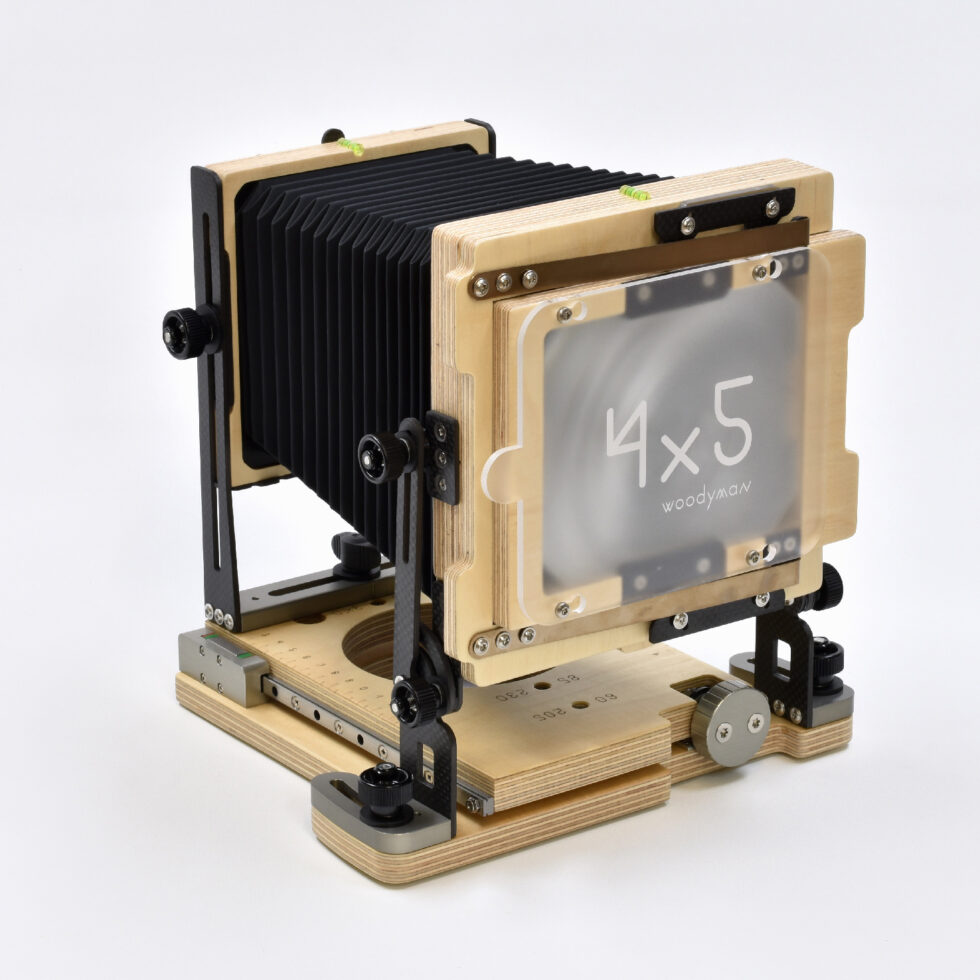

Frosted: glass with acrylic Fresnel
Lens board: 96×99 mm (Linhof 4×5)
· Includes set of 3 Copal boards (0, 1 and 3)

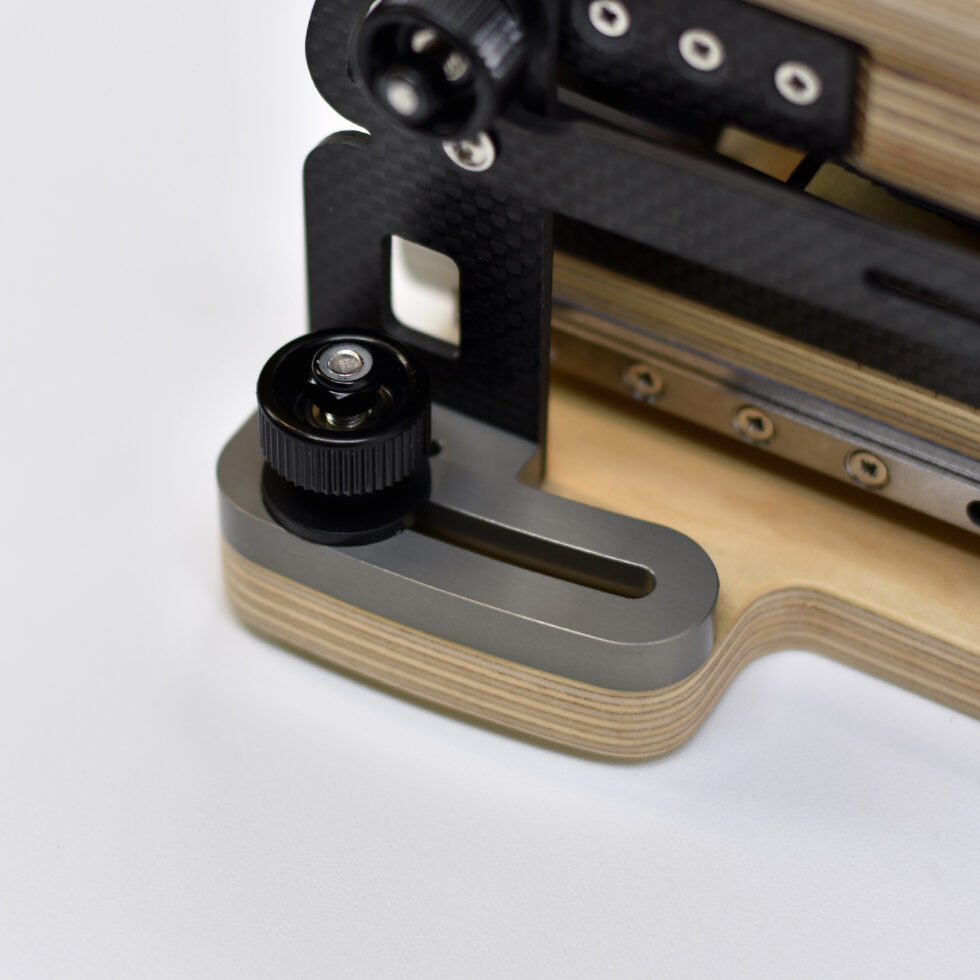

Tripod mount: one 3/8 inch mounting hole + 1/4 inch adapter

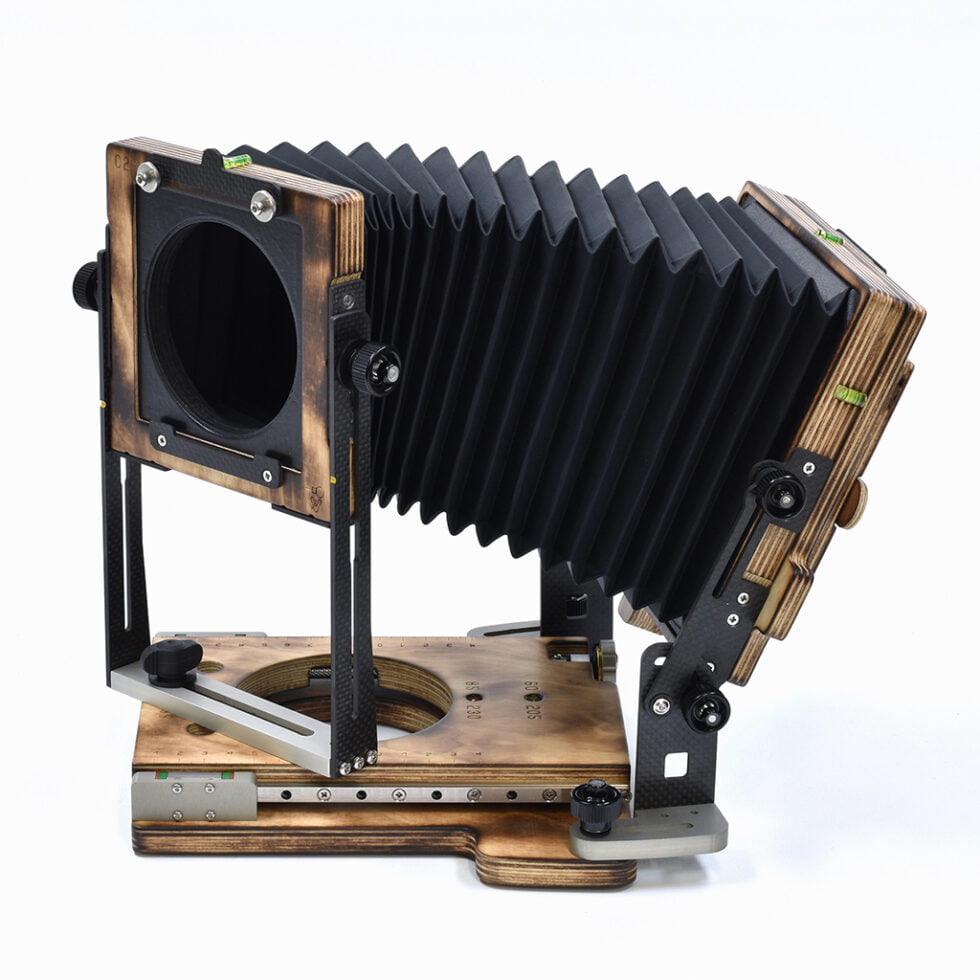

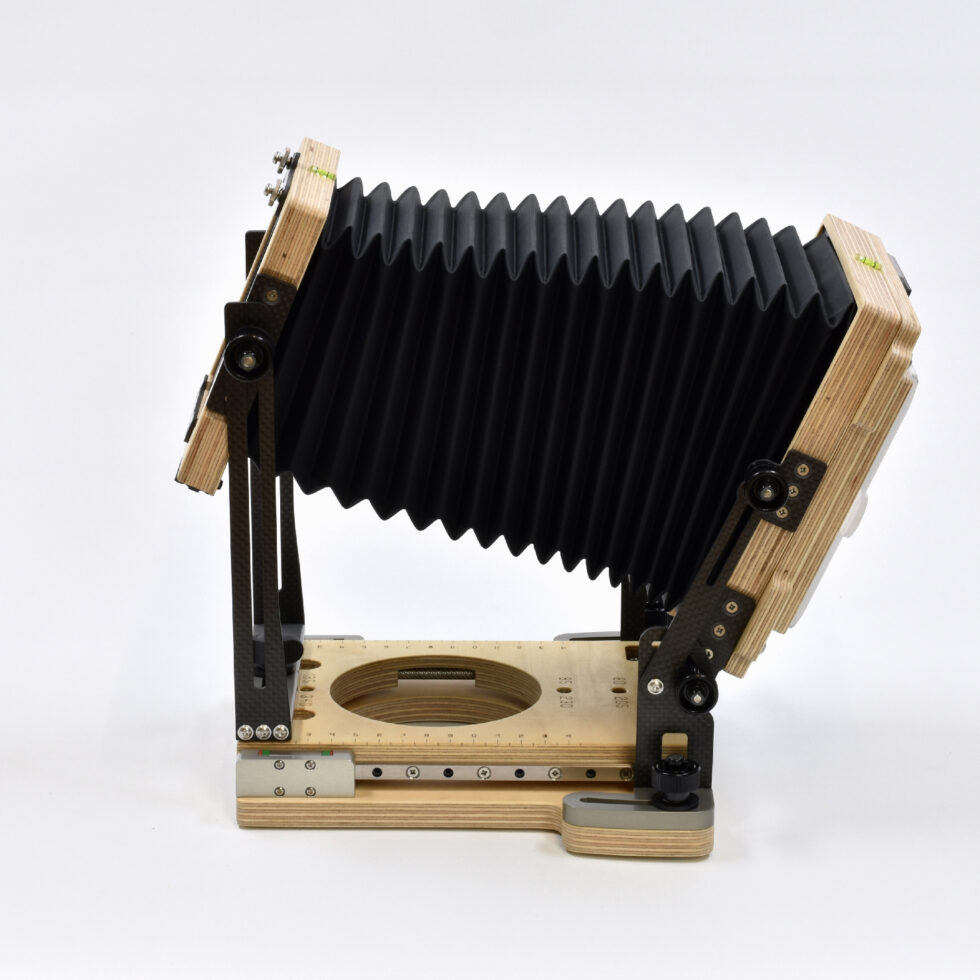

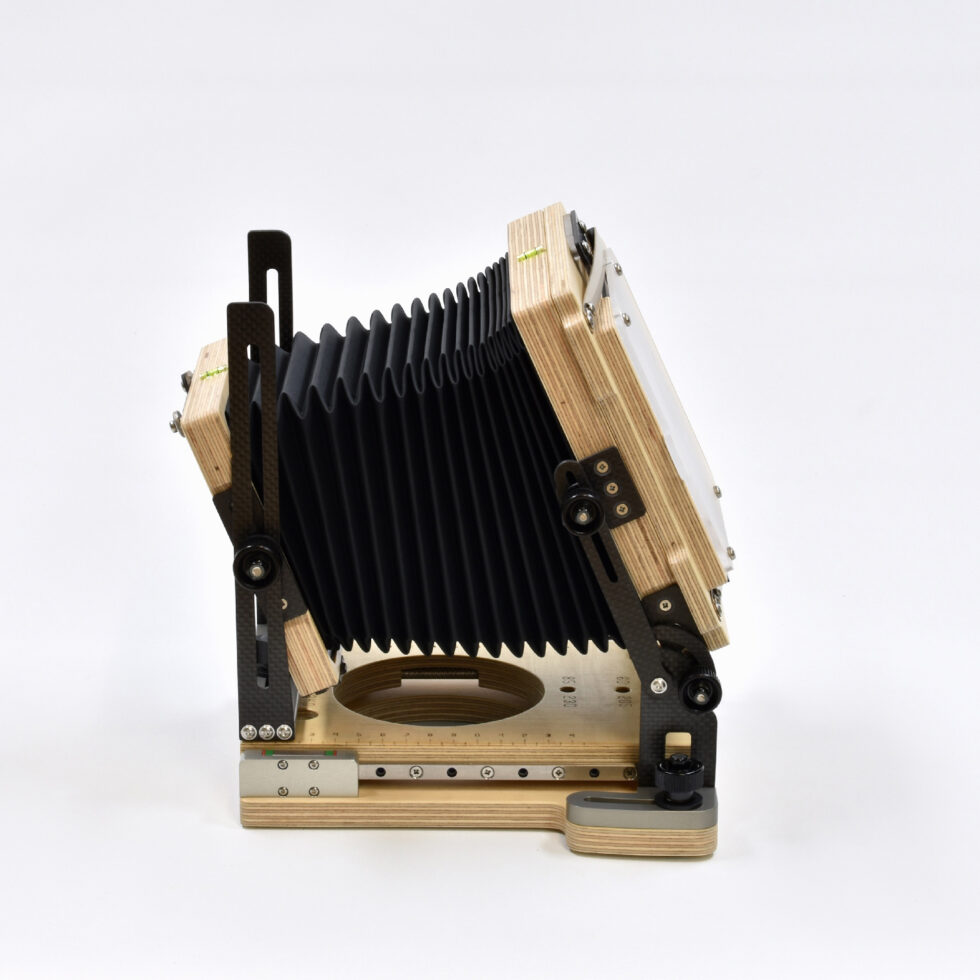

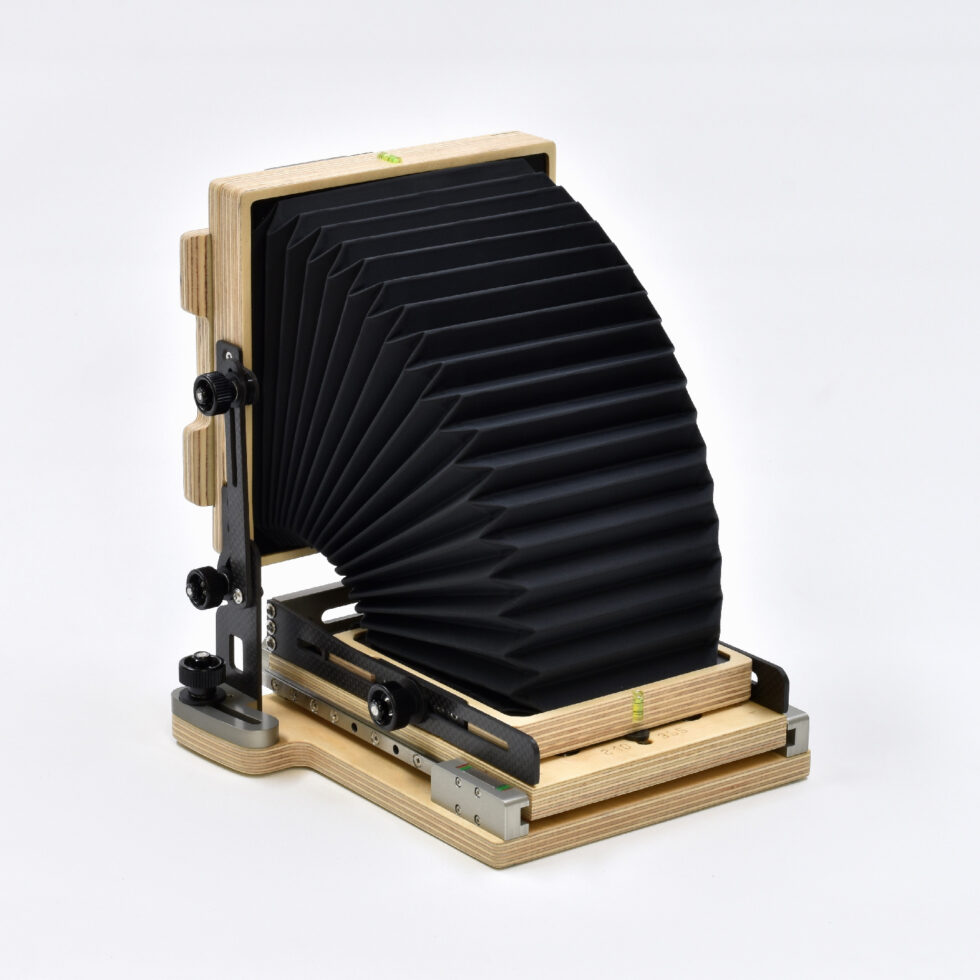

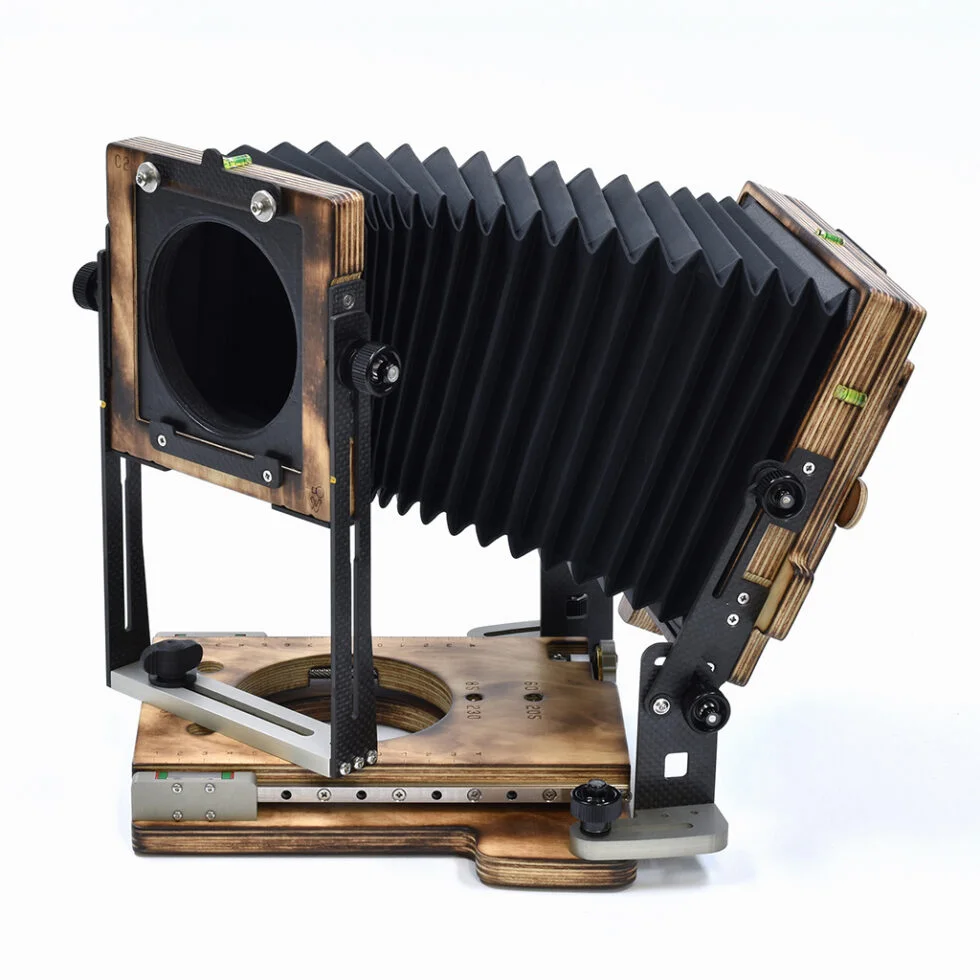

Movements:
· front plane tilt: only limited by the bellows
· front plane tilt: only limited by the bellows
· front horizontal offset: -/+ 40 mm
· front vertical offset: -/+ 40 mm

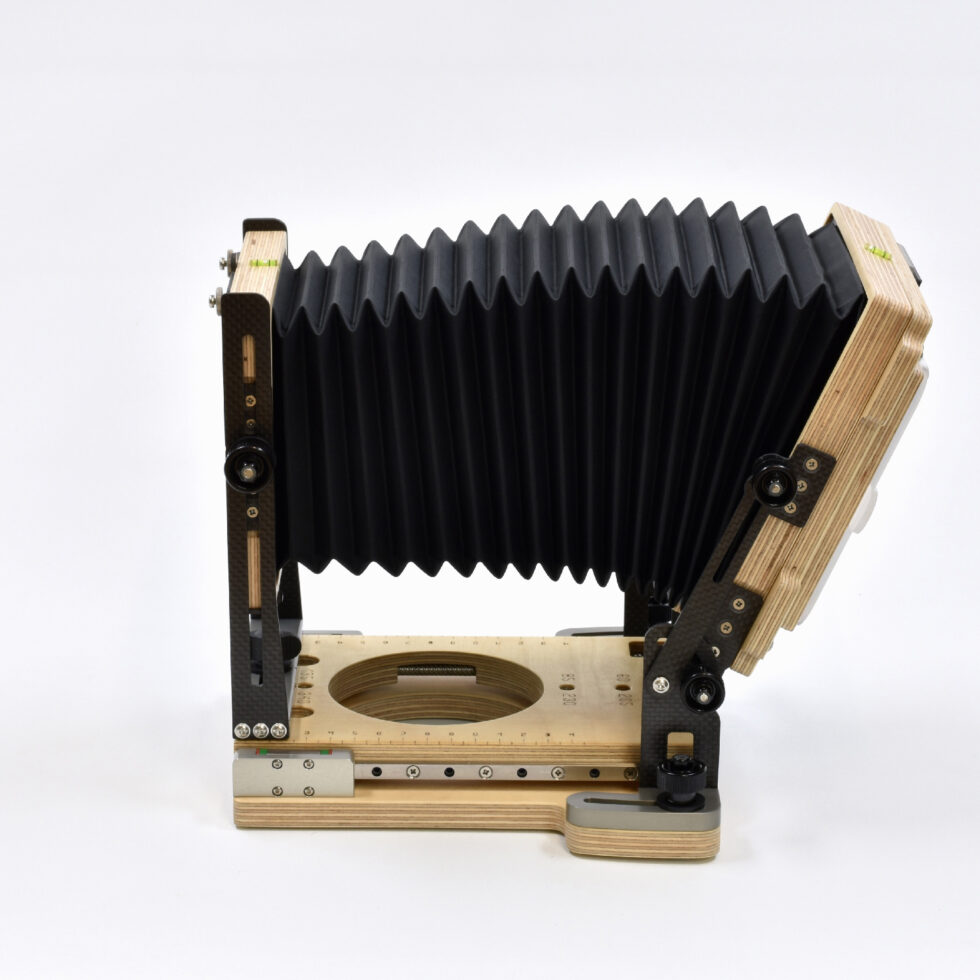

· rear plane inclination: -/+ 25°
· rear plane tilt (asymmetric): -/+ 10°
Additional information
| Weight | 1,8 kg |
|---|---|

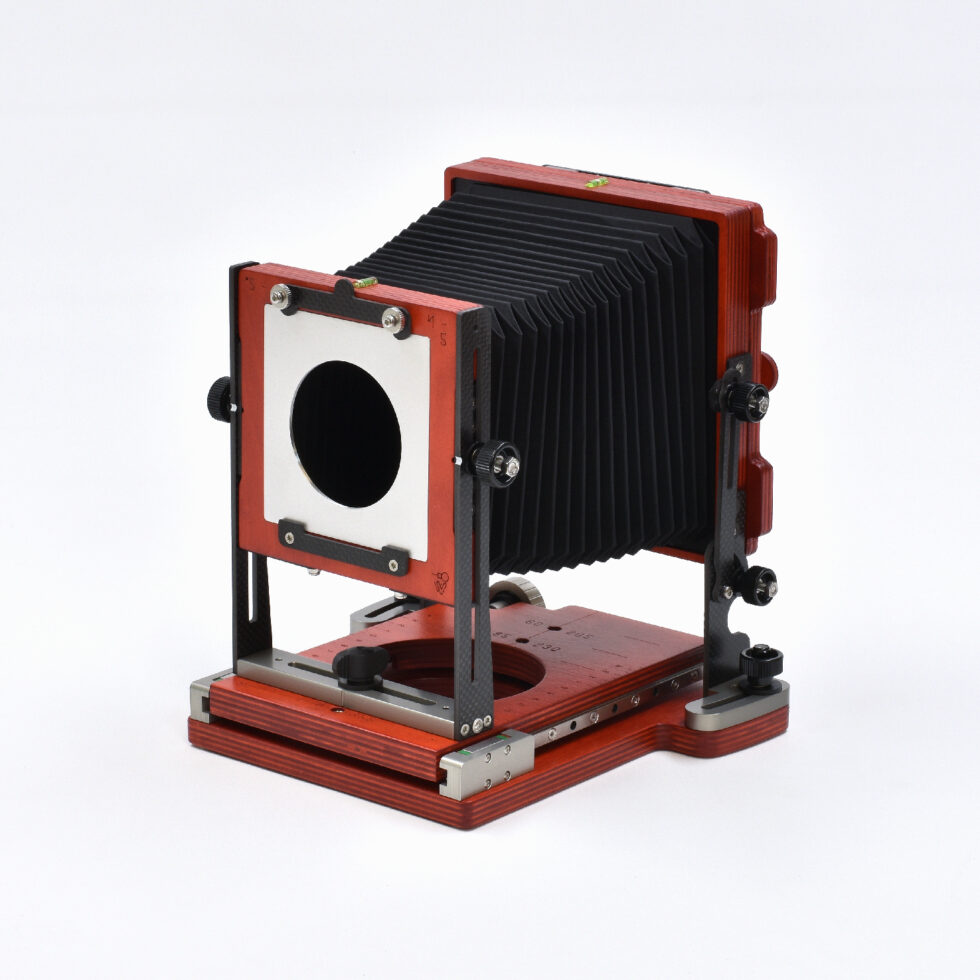

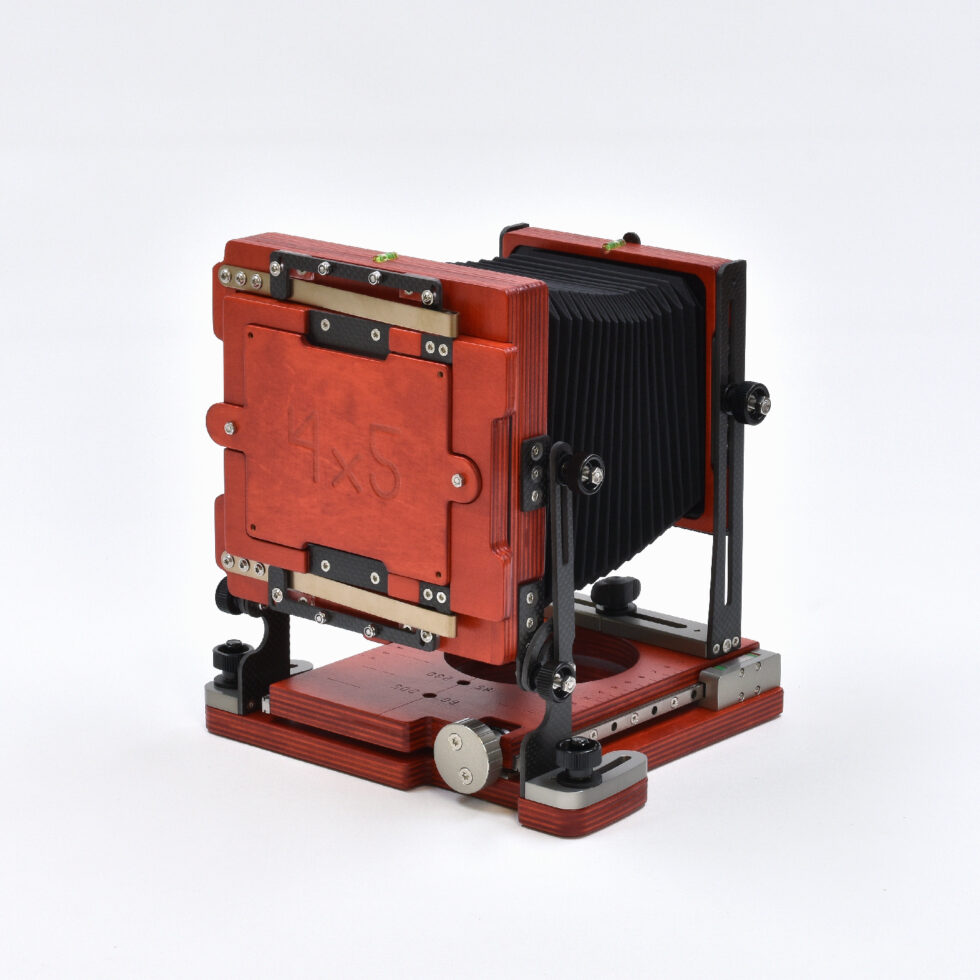

| Drink | natural, black, stained or burned wood |
| Bellows | black, other color |
| Engraving | Yes, No thanks |
Q & A (1)
Q & R
Poser une question
What tripod mounting system? Thank you for your clarification.
Hello Philippe, sorry for the very late reply, I hadn't seen your message.
The 4x5 has a standard 3/8 or 1/4 camera screw thread (adapter screw supplied).
Yours faithfully
(0)
(0)
